1噸DLER超低式環鏈電動葫蘆固定式
1噸DLER超低式環鏈電動葫蘆固定式產品參數：
|
MODEL型號 |
DLER 01-01 |
||
|
DLER 1/DLER2 |
DLER3 |
DLER4 |
|
|
Maximum load 最大載荷(≤6m/h) |
1.2t |
||
|
Rated load(Ton) 額定載荷(≤6m/h) |
1t |
||
|
Lifting speed(m/min)起升速度 |
單速6.8 |
雙速2.2/6.8 |
變頻0.8~6.8 |
|
Motor power(kw)電機功率 |
單速1.5 |
雙速0.6/1.5 |
變頻1.5 |
|
Motor speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class 電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply 工作電壓 |
Ac 380V L1 L2 L3 〧 |
||
|
Control Volatage 控制電壓 |
AC36V |
||
|
NO.of Load Chain 鏈條回數 |
1 |
||
|
Spec.of Load Chain 鏈條規格 |
7.1X21 |
||
|
Working level 工作級別 |
M5 |
||
|
|

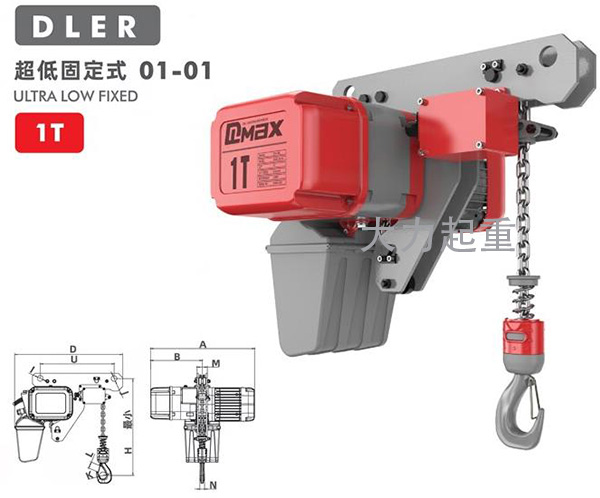

長度 |
|
H |
347 |
|
A |
590 |
|
B |
276 |
|
D |
615 |
|
U |
420 |
|
I |
31.5 |
|
J |
31.5 |
|
M |
16 |
|
N |
25 |
|
K |
42 |
|
L |
32 |
