20噸DLER環鏈電動葫蘆穿軸式
20噸DLER環鏈電動葫蘆穿軸式產品參數：
|
MODEL型號 |
DLER20-08 |
||
|
DLER 1/DLER2 |
DLER3 |
DLER4 |
|
|
Maximum load最大載荷(≤6m/h) |
23t |
||
|
Rated load(Ton)額定載荷(≤6m/h) |
20t |
||
|
Lifting speed(m/min)起升速度 |
單速1.35 |
雙速0.4/1.35 |
變頻0.2~1.35 |
|
Motor Power(kw)電機功率 |
單速3*2 |
雙速1.1/3*2 |
變頻3*2 |
|
Rotation speed(r/min)轉速 |
單速1440 |
雙速430/1440 |
變頻200~1440 |
|
Motor insulation class電機絕緣等級 |
F |
||
|
Frequency(Hz)頻率 |
50 |
||
|
Power Supply工作電壓 |
Ac 380V L1 L2 L3〧 |
||
|
Control Volatage控制電壓 |
AC36V |
||
|
NO.of Load Chain鏈條回數 |
8 |
||
|
Spec.of Load Chain鏈條規格 |
11.2x34 |
||
|
Working level工作級別 |
M5 |
||
|
|

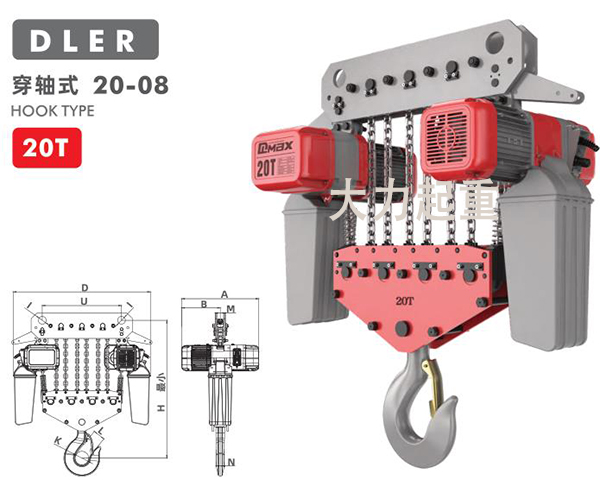

長度 |
|
H |
1270 |
|
A |
700 |
|
B |
350 |
|
D |
1250 |
|
U |
720 |
|
I |
70.5 |
|
J |
70.5 |
|
M |
92 |
|
N |
80 |
|
K |
120 |
|
L |
96 |
